• SONICS Ultrasonic Homogenizer
  • VCX2500
  • Power 2500W, standard amplitude rod processing capacity of 50L or more per batch.
  • VCX2500
  • SONICS Ultrasonic Homogenizer
  • Power 2500W, standard amplitude rod processing capacity of 50L or more per batch.

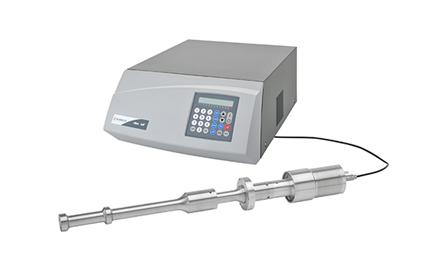

SONICS Ultrasonic Homogenizer VCX2500: Air-cooled converter capable of batch processing up to 50 liters. Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing, and large-scale dispersion systems).
Product Introduction
SONICS Ultrasonic Homogenizer VCX2500: Air-cooled converter capable of batch processing up to 50 liters. Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing, and large-scale dispersion systems).


Product features
◆Batch size up to 50 liters
◆Energy and temperature set point control
◆Automatic tuning
◆Digital wattmeter
◆Full-function process timer
◆Variable power output control


Technical Parameters
Model: VCX 2500
Frequency: 20KHz
Power: 2500W
Standard Horn: Φ38mm
Standard Horn Length: 370mm
Standard Horn Processing Capacity: Each batch up to 50L
Horn Overall Dimension: 240 x 445 x 711 mm
Horn Material: Titanium alloy Ti-6Al-4V
Optional Horn: Φ25mm, Φ38mm
Horn Weight: 816g
Horn Cable Length: 3m
Duty Cycle: 1-99%
Power Adjusting Range: Continuously adjustable (25-2500w)
Gap Time: 0.1-99.9s
Temperature Protection Setting: Yes
Power Amplitude Display: Yes
Operating Mode: Gap/Continuous
Power Supply: 220/110V 50Hz/60Hz or unless otherwise specified, power requirements are 117V, 50/60Hz
Mainframe + Converter Weight: 21.8kg



Product List
VCX2500 Unit
Host Machine Unit
Power cord piece
Support Bracket Set
Temperature sensor piece
User manual copy
Description
1
1
Optional
Optional
1
